CLASSIC Voltmeter DC
DC voltmeter - Direct connection - 90° or 250° deflection
CLASSIC Ammeter AC
Analogue device
Designed and manufactured
Cost-effective solution
Easy installation
Product presentation
The CLASSIC range of needle indicators is designed to operate in standard and industrial environments: electrical panels and cabinets, laboratory equipment, etc.
The range is available in several sizes (48, 72 and 96 mm) and several types of measurement quantities, from IP52 to IP55.
Available in numerous standard references.
- AC ammeter
- Direct connection or on 1A or 5A CT
- Normal scale or motor
- 50 or 60 Hz moving-iron measuring element
- 50 to 10,000 Hz moving-coil measuring element
- Deflection 90° or 250°
- Format 48, 72 or 96
Analogue device
Designed and manufactured
Cost-effective solution
Easy installation
Contact a sales representative
Need information about our solutions? Our experts are available to advise you and assist you with your project. Contact a sales representative now for a detailed presentation and a quote tailored to your needs.
Highlights
- Reference standard IEC 60051-1
- Designed for common industrial applications.
- Technology and cost suitable for manufacturers of machines and electrical switchboards.
- Numerous items listed.
- IP52 as standard (IP55 on request)
Features
Function
Classic AC ammeter (CL)
Measurement element
90° deviation
Ferromagnetic, 50 to 60 Hz magnetoelectric with rectifier, 50 to 10,000 Hz
240° deviation
Magnetoelectric with rectifier, 50 to 10,000 Hz
Normal scale
100 mA to 30 A
Engine scale
from 0 to In at 2/3 of the scale, then from 3 to 6 In at the end of the scale (standard value 3 In)
Connection mode
Direct
0 to 30 A
On CT
In: 1 A or 5 A (scale from 0 to 1.3 In)
General specifications
Reference standard
CEI 60051-1
Class index (accuracy class)
01/05/2025
Assembly
On front of panel - Panel thickness 8 mm max.
Format
48x48 mm - 72x72 mm - 96x96 mm
Needle deviation range
90° or 240°
Ingress protection (IP)
IP52 - IP55
Overload ammeter
1.3 In permanent / 10 In for 5 s
Conditions of use
Nominal operating temperature: 23 °C +/- 2 °C.
Operating temperature limit: -25 °C to +50 °C.
Relative humidity: < 90% to 40 °C
Dial Inscription/marking/numbering on request
yes
Documentation and support
Language *
Contact support
Have a question about using or installing your equipment? Our support team is available to provide you with quick and effective solutions. Contact support for personalized assistance.
References and accessories
To fully meet your expectations, a range of accessories is available that is compatible with your equipment. Feel free to add them to your quote request to obtain a complete and tailored solution.
Identify your reference
This downloadable selection guide allows you to identify the item code corresponding to your needs.
Add or remove products from your selection directly online, then fill out the form with your contact details. Once your request has been sent, our specialist teams will review it and respond as soon as possible with a solution tailored to your needs.
Classic Dial Ammeter AC 72x72mm 90° 0-25/75A TC 25/5A Class 1,5
19620616
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-25/75A TC 25/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-30/90A TC 30/5A Class 1,5
19620617
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-30/90A TC 30/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-40/120A TC 40/5A Class 1,5
19620618
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-40/120A TC 40/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-50/150A TC 50/5A Class 1,5
19620619
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-50/150A TC 50/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting

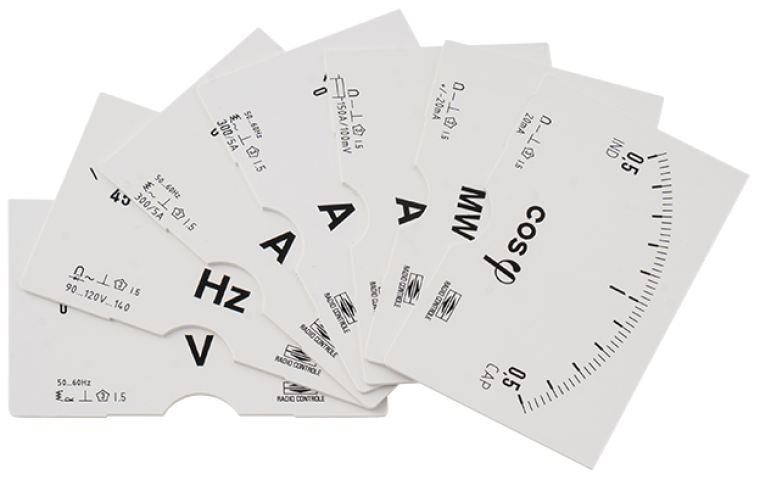

Classic Dial Ammeter AC 72x72mm 90° 0-60/180A TC 60/5A Class 1,5
19620621
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-60/180A TC 60/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-75/225A TC 75/5A Class 1,5
19620623
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-75/225A TC 75/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-80/240A TC 80/5A Class 1,5
19620624
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-80/240A TC 80/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-125/375A TC 125/5A Class 1,5
19620626
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-125/375A TC 125/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-150/450A TC 150/5A Class 1,5
19620628
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-150/450A TC 150/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
Classic Dial Ammeter AC 72x72mm 90° 0-200/600A TC 200/5A Class 1,5
19620630
Classic panel meter AC ammeter dial - Size 72x72mm - 90° deflection - Measurement range 0-200/600A TC 200/5A - Accuracy class 1.5 - Reference standard IEC 600051-1 - Round barrel with 2 studs for mounting
