MEMO TD80
Cost-effective solution
Easy installation
Easy programming
Product presentation
MEMO TD80 is one of our economical solutions for measuring active energy consumption on a 230/400 Vac 4-wire three-phase electrical network. Its compact dimensions (4 DIN modules) make it easy to install in an electrical control box.
Main specifications:
- Current: up to 80 A
- Direct connection
- LCD screen: Partial index from 0 to 999999.99 kWh / Cumulated index from 0 to 999999.99 kWh
- Consumption < 0.4W / <8 VA
- Pulse output: 100 imp/kWh
- Metrological LEDs: 1,000 flashes/kWh / 1,000 flashes/kvarh
Cost-effective solution
Easy installation
Easy programming
Contact a sales representative
Need information about our solutions? Our experts are available to advise you and assist you with your project. Contact a sales representative now for a detailed presentation and a quote tailored to your needs.

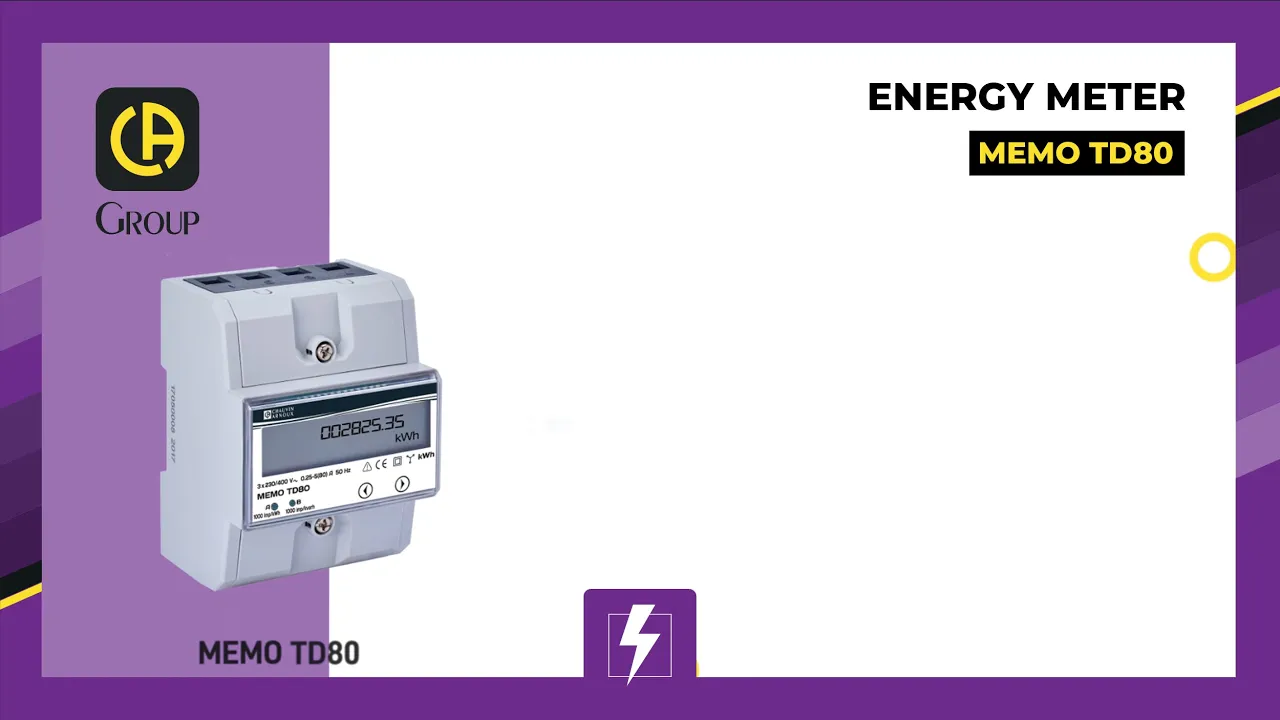

Video
MEMO TD80 Energy meters
MEMO TD80 meters are the essential tools for a local medium power feeder energy metering.
Highlights
Direct connection without parameter settings Rated current: : 5(80) A Inrush current: 0.02A Total and partial index with zero reset Accuracy class 1 (IEC 62053-21) Compact: 4 DIN modules Lead-sealable covers Pulse output as standard
Features
Electrical specifications. Current input
Type
Direct
Nominal current (In)
80 A
Starting current (Ist)
20 mA
Electrical specifications. Voltage input
Nominal voltage (Un)
3 x 230/400 Vac (±20%)
Consumption
≤ 8 VA - ≤ 0.4 W
Frequency
50/60 Hz
Electrical specifications. Pulse output
Duration
30 ms
Weight
100 pulses/kWh
Maximum voltage
12-27 Vdc
Maximum current
27 mA
Electrical specifications. Accuracy
Active energy
Class 1 according to IEC 62053-21
Electrical specifications. Metrological LED
Weight
10000 imp/kWh, /kVArh
Mechanical specifications.
Format
4 DIN modules
Assembly
On 35 mm DIN rail
Power circuit connection
Screw terminal block for 35 mm² wires
Pulse output connection
Screw terminal block for 1.5 mm² wires
Ingress protection
IP50 front panel
Environment.
Temperature of use
-25 °C to +65 °C
Storage temperature
-25 °C to +75 °C
Relative humidity
Max 85% non-condensing
Display.
Display
LCD
Number of digits
6+2
Documentation and support
Contact support
Have a question about using or installing your equipment? Our support team is available to provide you with quick and effective solutions. Contact support for personalized assistance.
Contact support
Have a question about using or installing your equipment? Our support team is available to provide you with quick and effective solutions. Contact support for personalized assistance.
References and accessories
To fully meet your expectations, a range of accessories is available that is compatible with your equipment. Feel free to add them to your quote request to obtain a complete and tailored solution.
MEMO TD80 energy sub-meter 230/400Vac 80A
P01330745
MEMO TD80 DIN rail format energy sub-meter - 230/400Vac network measurement - 80A rated current
